BTSM POKEBALLS

truss new_edited_edited.png
truss new_edited_edited.png
PB 1.png
PB 2.png
PB 3.png

PROFESSIONAL PICS: KAREL D

BTSM POKEBALL RENDER_edited.jpg

FINAL MODEL AND ASSEMBLY

DESCRIPTION:
A BTSM Themed Pokeball to go with the Pokemon themed photoshoot and to giveaway to fans.

​

MODELING:

Initially designed in Blender, final design created in Autodesk Inventor.

vers1 model.png

VERSION 1: DESIGNED IN BLENDER

PRINT:
Overture PLA (Black, Red, White)

​

MACHINES:

BambuLab A1

​

MECHANICS:

Simple materials were used for the hinge and button mechanisms.  The hinge uses a small piece of filament, and the button was assembled carefully with super glue and a pen spring to secure the buckle.

spring chamber.png

SPRING ADHERED TO BUTTON IN BLUE BOX

GALLERY:

truss new_edited_edited.png
truss new_edited_edited.png

notes & fun facts:

- 12 of these have been made:

​

  1. 4 for the photoshoot, 1 of those were given away in the umbreon helmet giveaway

  2. 5 for church rocks, all of which given away at the meet up

  3. 3 were botched and remain with me and grunglings

​

- These will only ever be giveaways because no one wants to get beaten with the Nintendo hammer

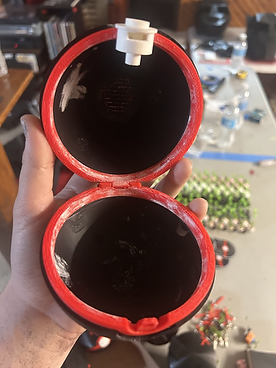

- Pictured: botched ball, today we learn glue choices matter </3


- This was largely inspired by the "trend" on makerworld of the pokeballs designed to look like Pokemon.
